VNC-28 PHOENIX

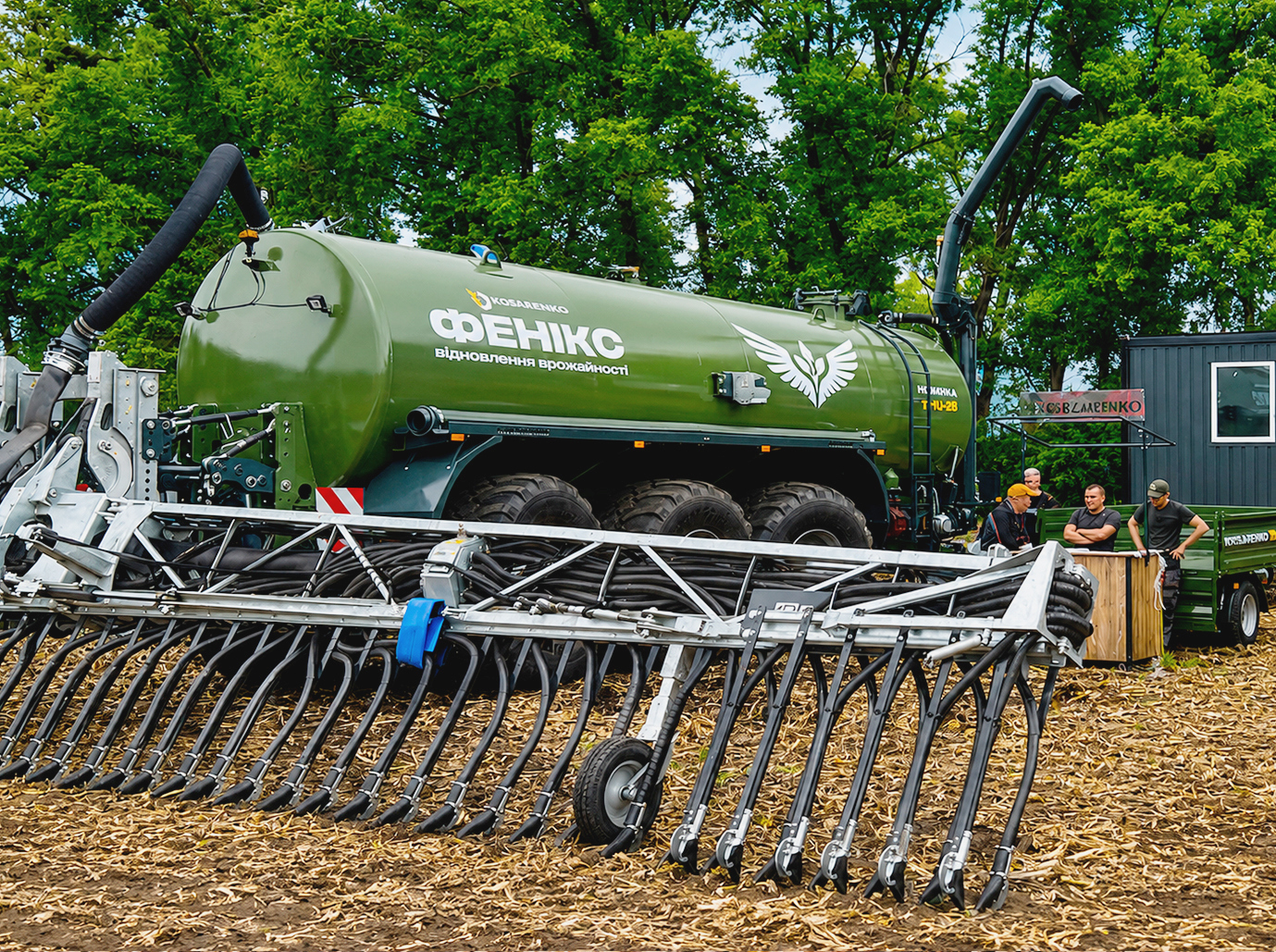

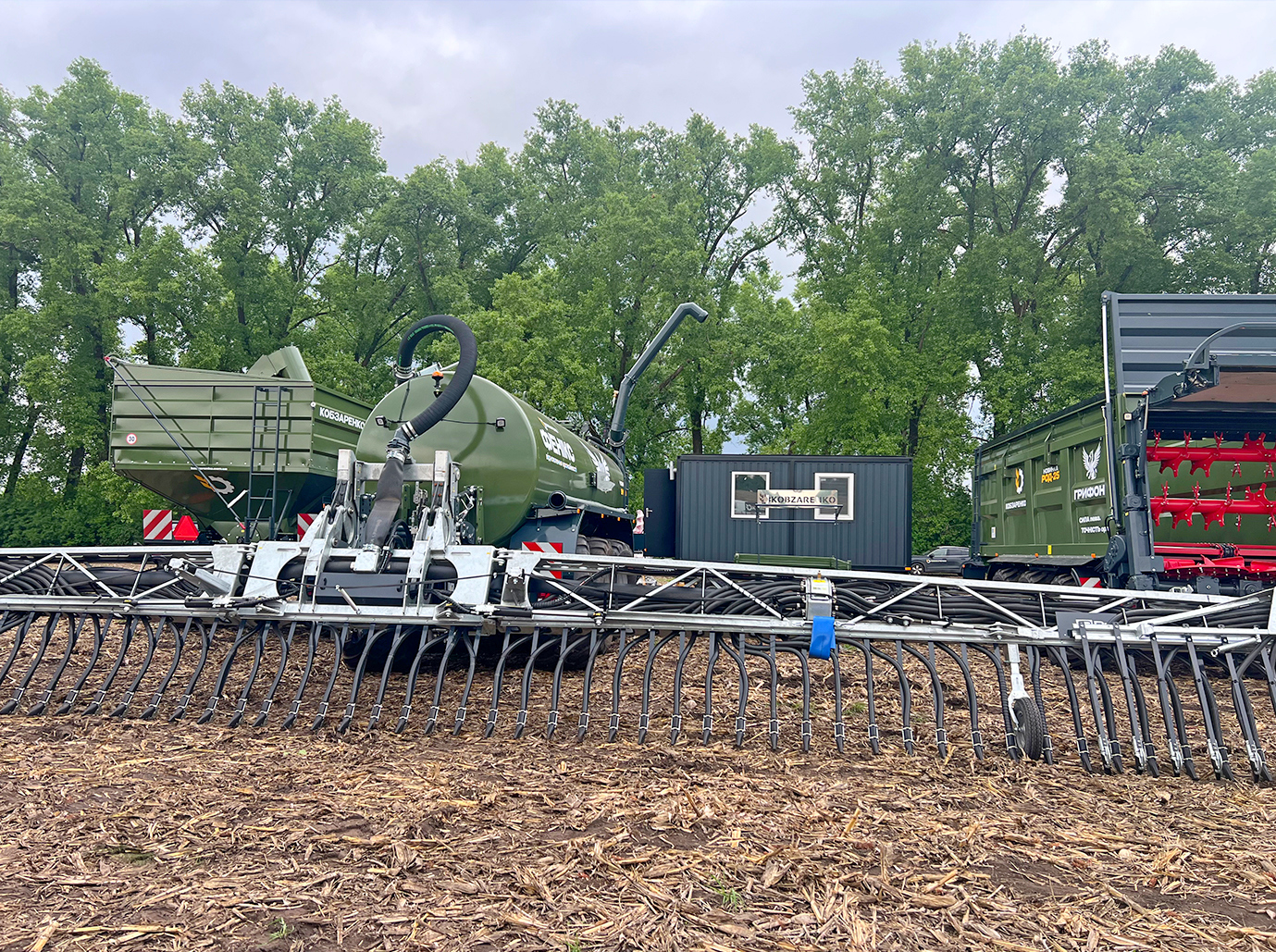

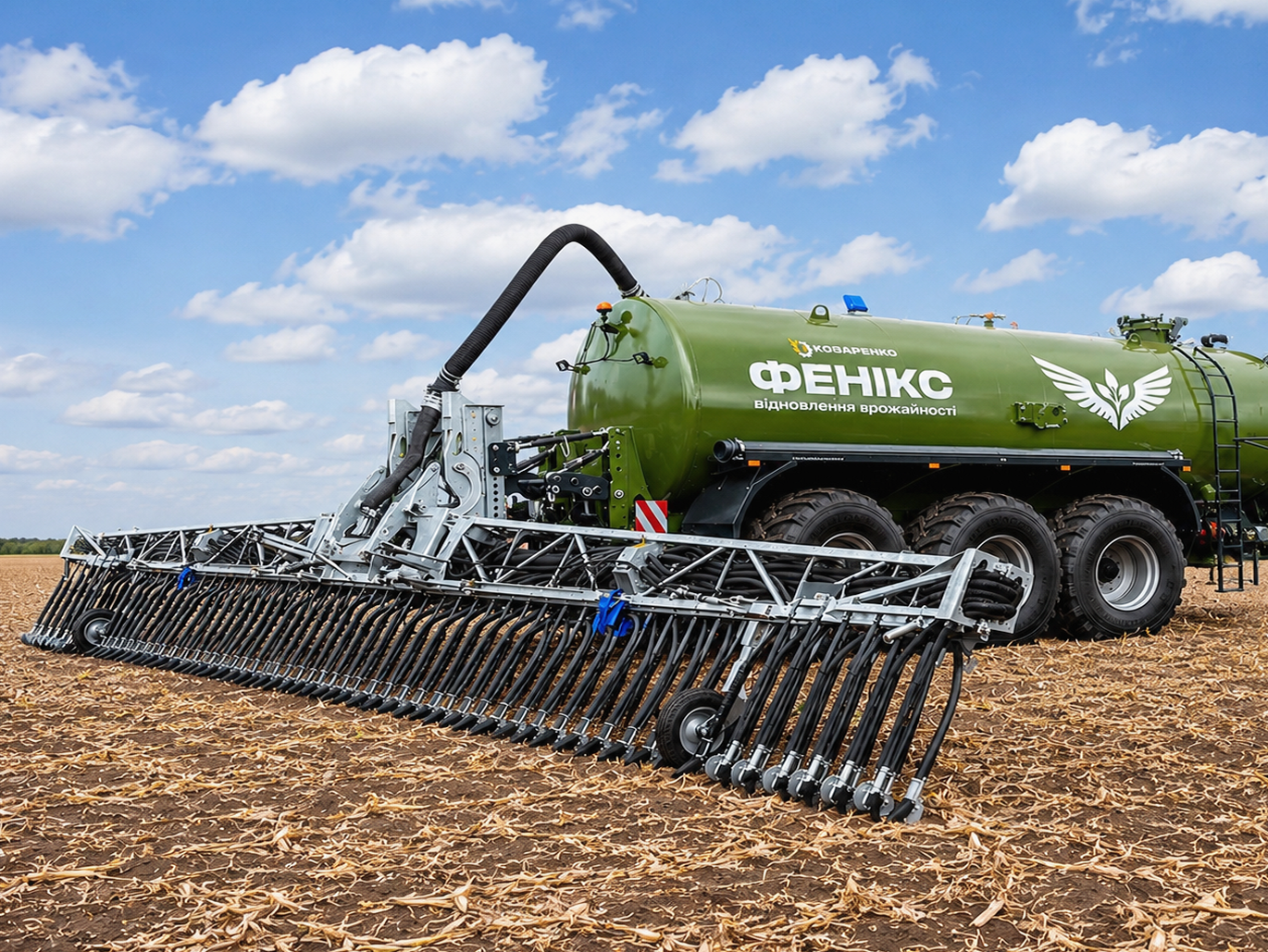

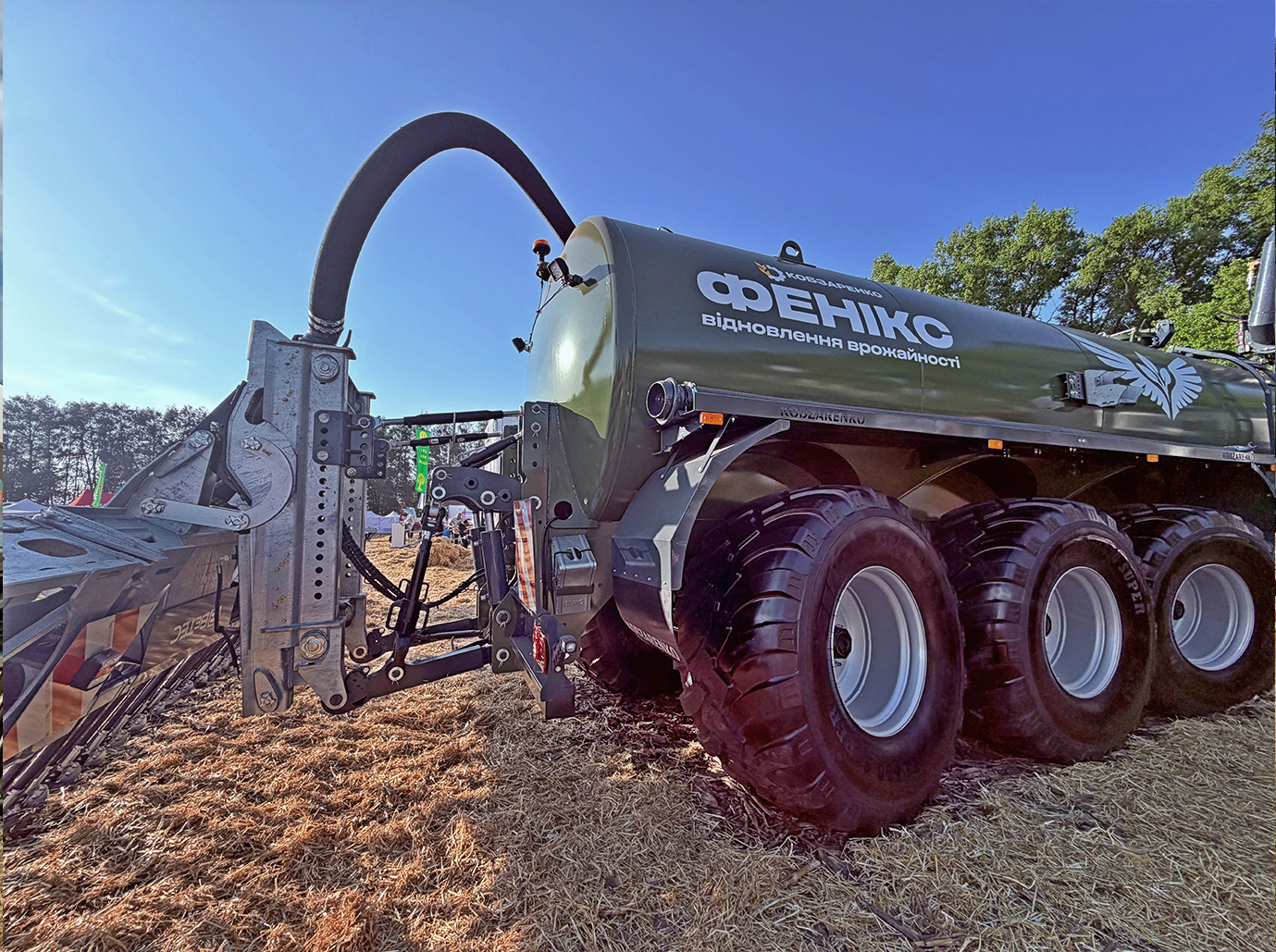

Vacuum tank semi-trailer VNC- 28 PHOENIX
Characteristic:
| Model | VNC-28 |
| Volume, m³ | 28 |
| Suspension | hydraulic |
| Number of axles | 3 |
| Metal thickness, mm | 8 |
| Total weight, kg | 41 |
| Working width | 18 m |

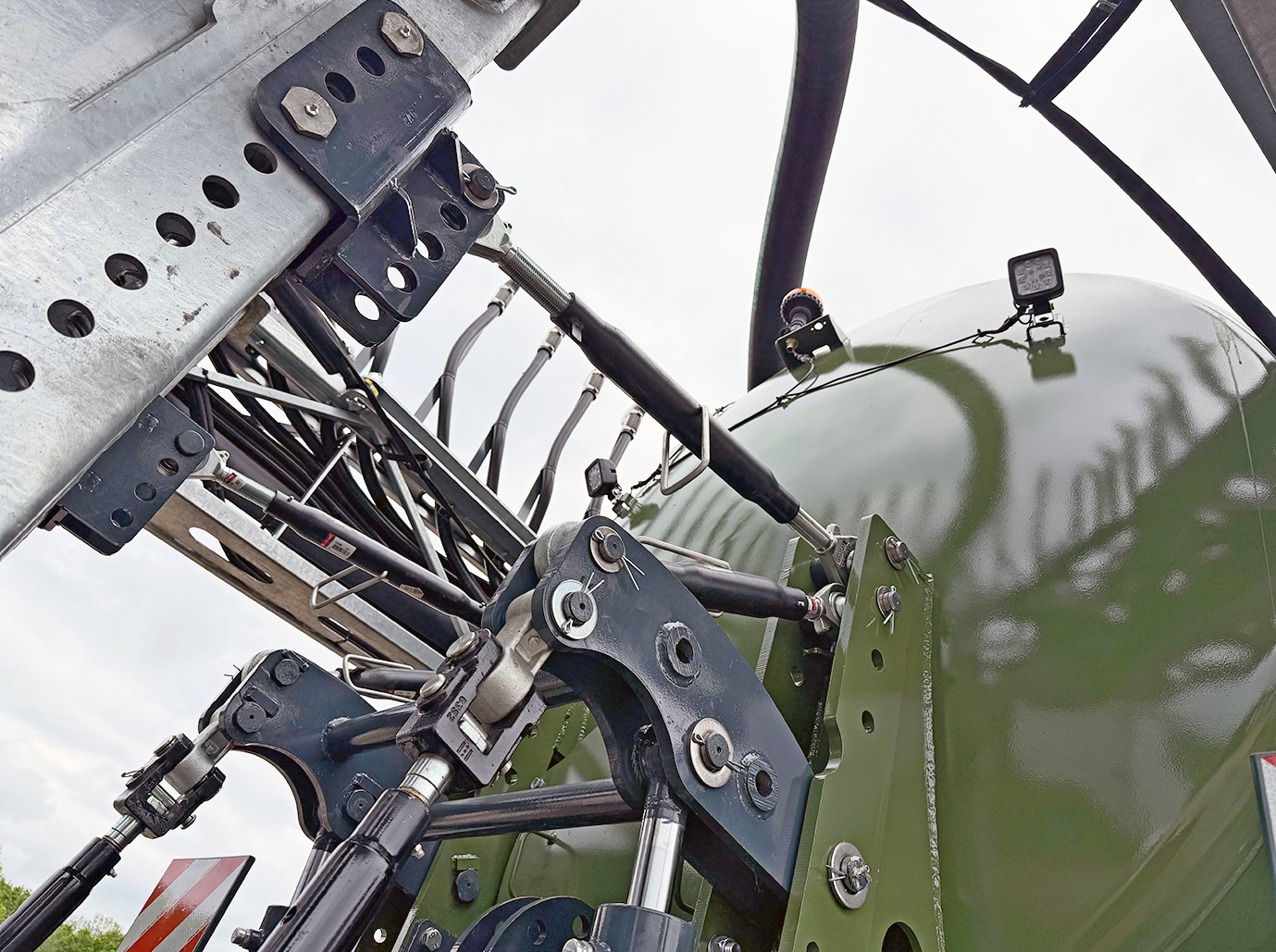

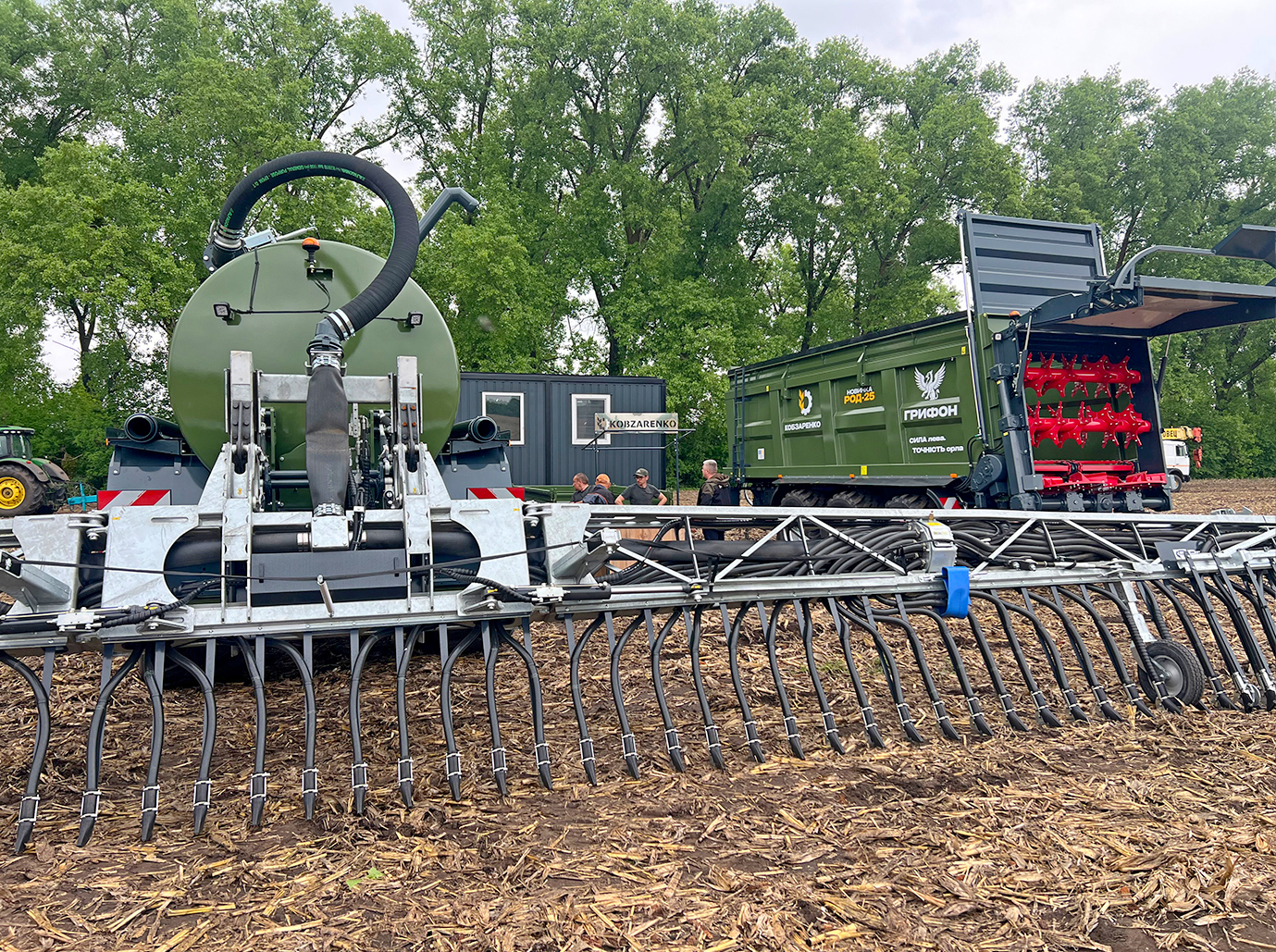

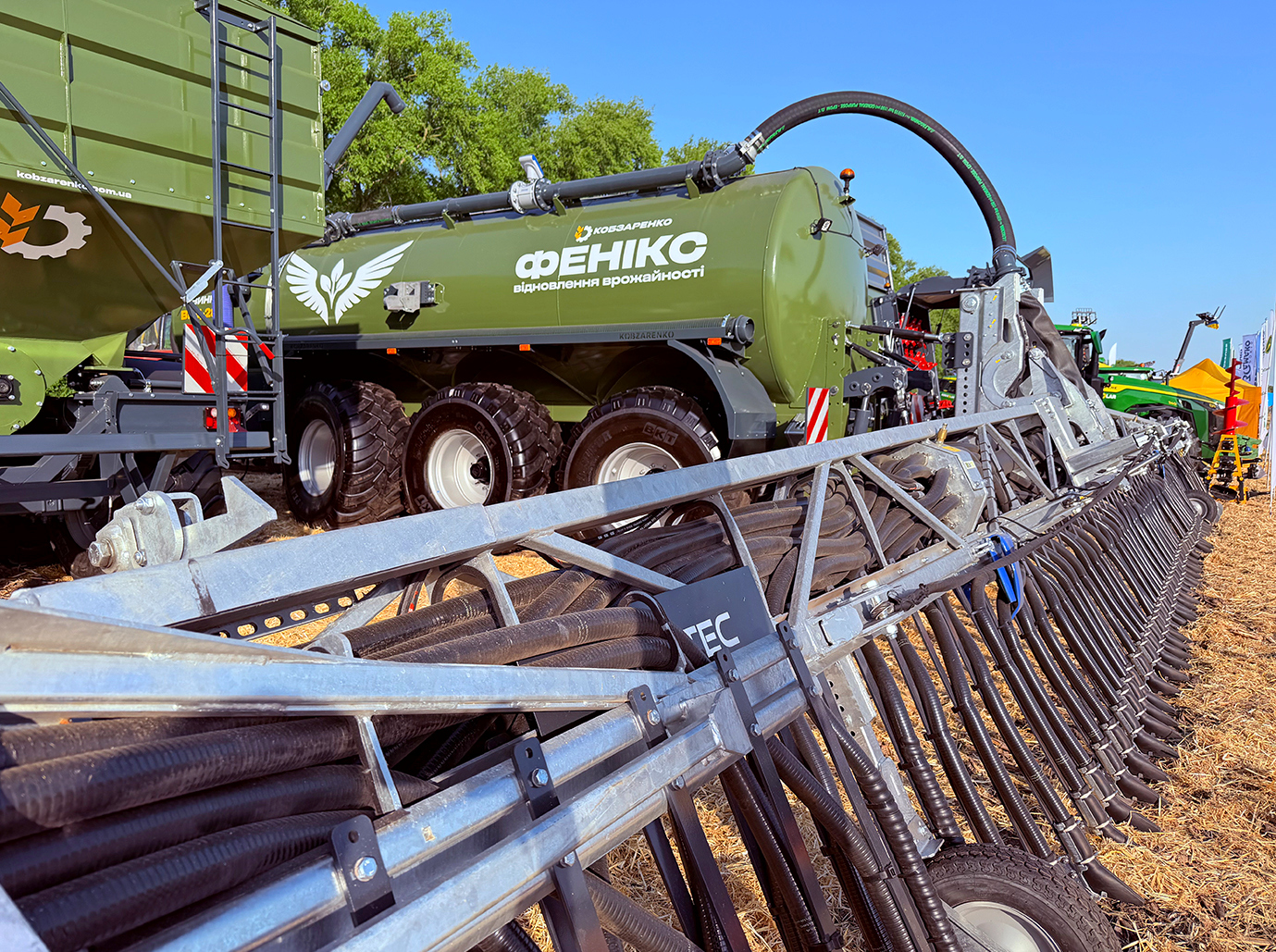

| Distribution type | boom distributor |

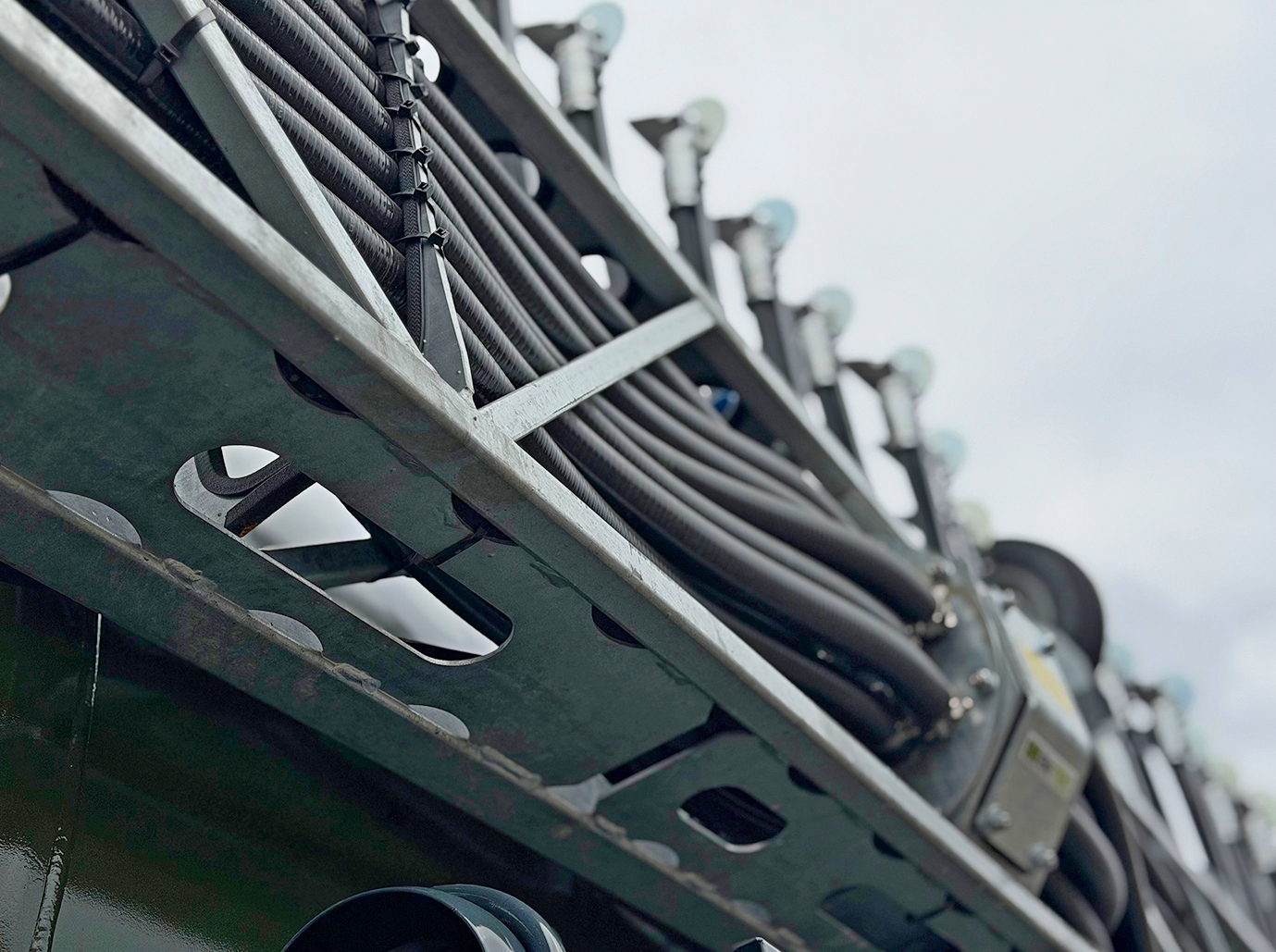

| Number of distribution hoses | 72 pcs |
| Approx. spacing between hoses | 25 cm |

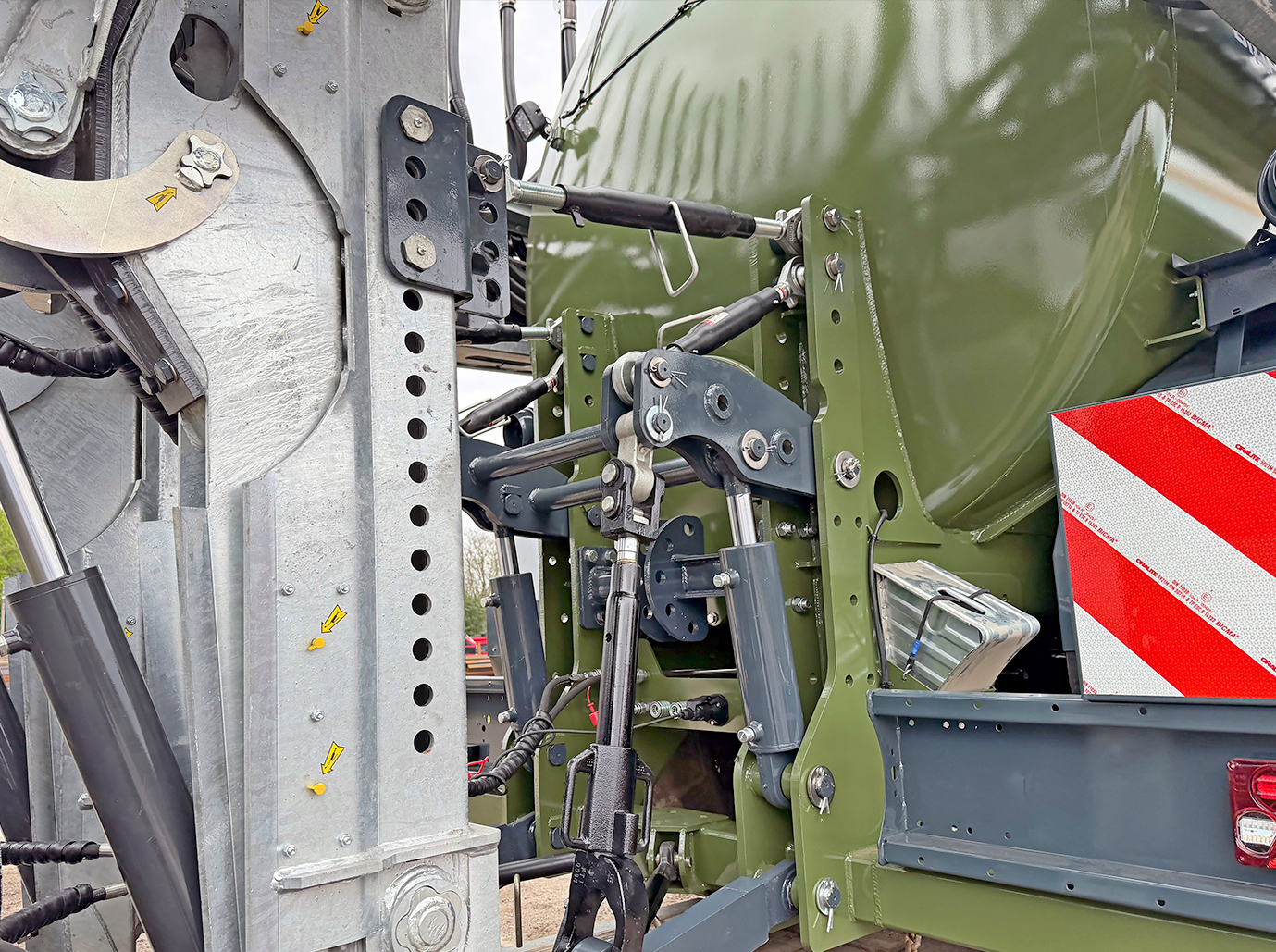

| Hitch | universal, category III |

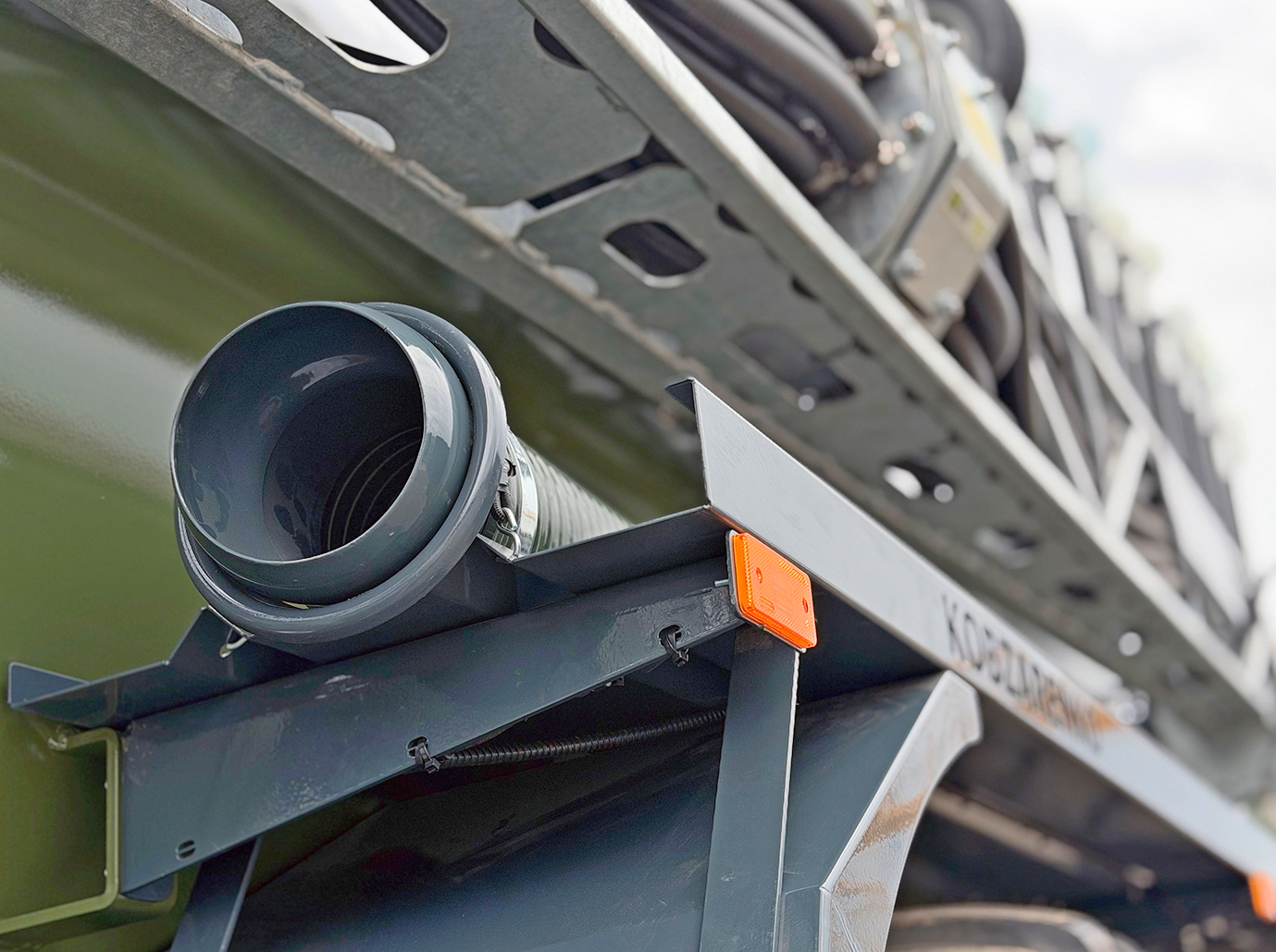

| Hose diameter | 38 mm |
| Opening / folding time | 25–30 sec |
| Required oil flow | 80 l/min |

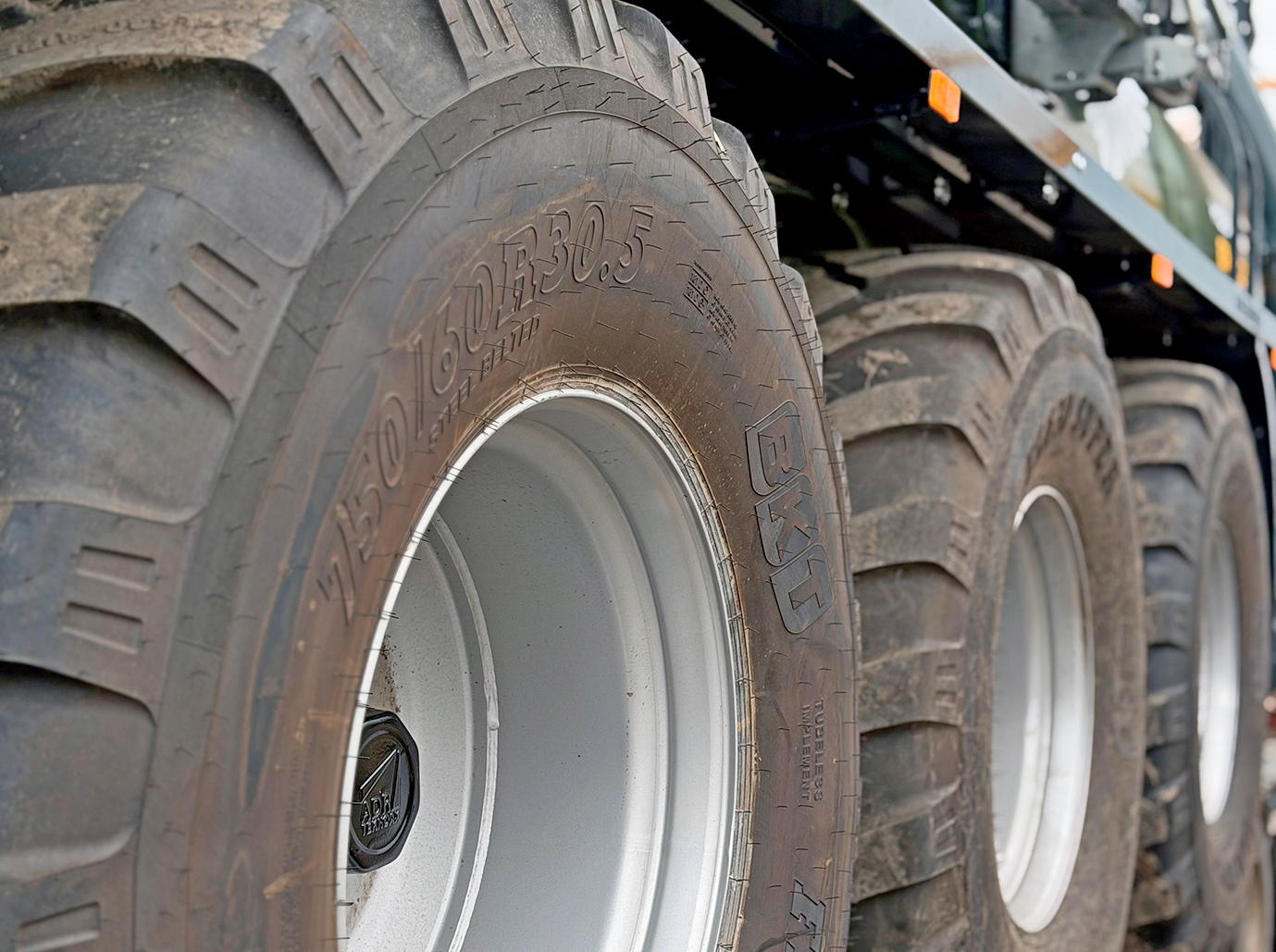

| Wheel size | 750/60 R30.5 |
| Required tractor power | 400 hp |
Working principle:
Water and liquid organic fertilizer tanker trailers with a 28 m³ capacity.
The tanks are used for filling, transporting, and applying liquid organic fertilizers, as well as for delivering water and pesticide spray solutions.
🔹 It works on the principle of precision agriculture: you upload a field map, and the system automatically adjusts the application rate for each area depending on soil needs. The computer takes into account the tractor’s speed, application width, and automatically regulates the liquid flow.

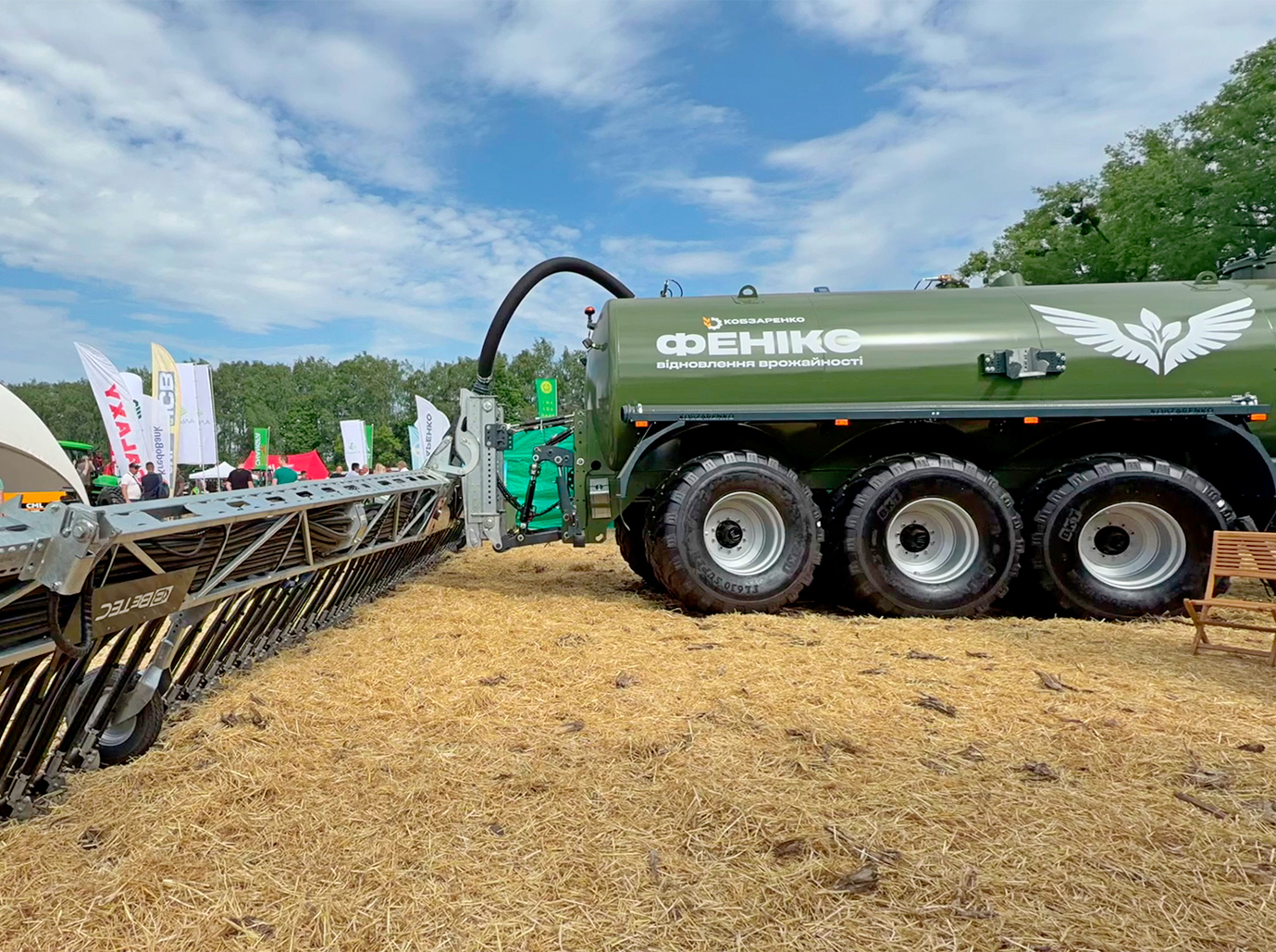

🔹 Minimal soil compaction: large wheels and hydraulic suspension help the machine move smoothly even across uneven fields.
🔹 Wheel rotation sensor — indispensable in working conditions where GPS signal may be interrupted or jammed. In such cases, the machine’s travel speed is determined using this sensor, allowing the system to maintain accurate application rates.
