PTO shafts

Driveshafts play a key role in transmitting torque from the tractor to the implement, ensuring stable and efficient operation of trailed machinery. Kobzarenko Plant offers high quality cardan shafts that are suitable for both its own equipment and units from other manufacturers.

Series	The maximum torquetorque, N-m	Power kW, at 540 rpm/1000 rpm.	Size of the crosspiece		Application.	Drive shaft
G1	320	12/18	22.0	54.0	Mineral fertilizer spreader, mounted sprayer	Simple universal joint connection
G2	450	15/23	23.8	61.3	Trailed sprayer, grain reapers	Simple universal joint Overrunning clutch
G4	780	26/40	27.0	74.6	Garden sprayer, bale compactor, mower, hay stirrer, balers	Simple universal joint Overrunning clutch
G5	1050	35/54	30.2	79.4	Garden sprayer, corn headers	Simple universal joint Overrunning clutch
G7	1450	47/74	30.2	91.4	Liquid fertilizer spreaders, balers, PBN, ZRM-180, ZPM-180, NRU-180, BNP-12, VNC	Simple universal joint With shear bolt
G8	1800	61/96	30.2	91.4	Tillers, fertilizer spreaders, feed spreaders	Simple universal joint With shear bolt

Advantages of driveshafts from Kobzarenko

European quality – PTO shafts are manufactured by leading manufacturers such as Bondioli & Pavesi (Italy), which guarantees their high reliability.
Wear protection – use of durable materials and anti-corrosion coating.
Variety of models – PTO shafts are available in various lengths, diameters and connection types.
Safety in use – special couplings and protective covers prevent breakage and increase work safety.
Availability of running models in stock

Range and selection of driveshafts

The site presents only a part of the assortment, so please contact our managers to find the right option.

Spare parts department contacts:
(095) 299-01-44
(050) 369-77-49
(050) 403-70-76

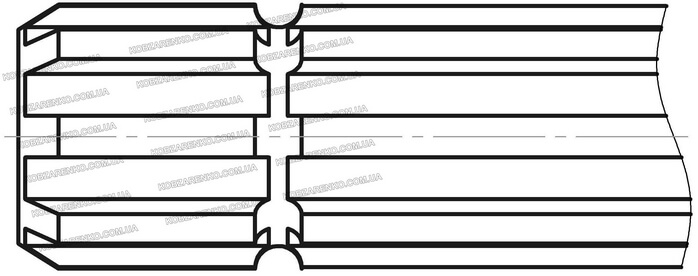

Designation(inch)	The number ofsplines	Internal splines	External splines

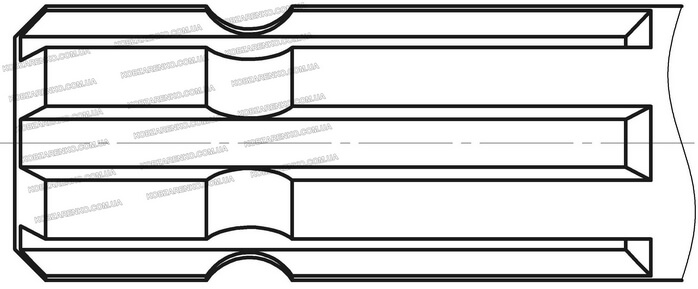

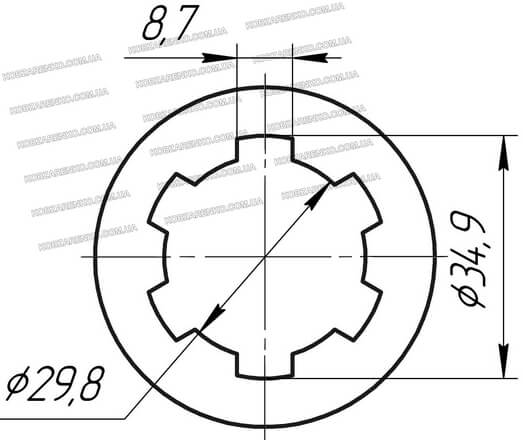

1⅜	(6)

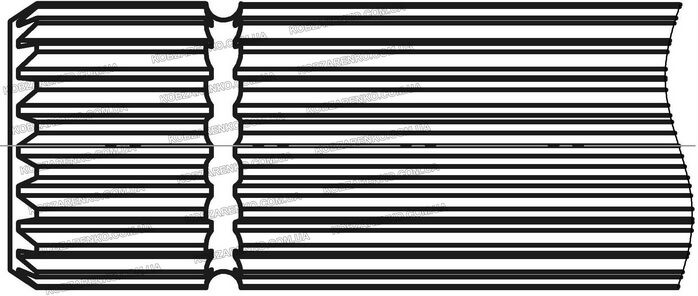

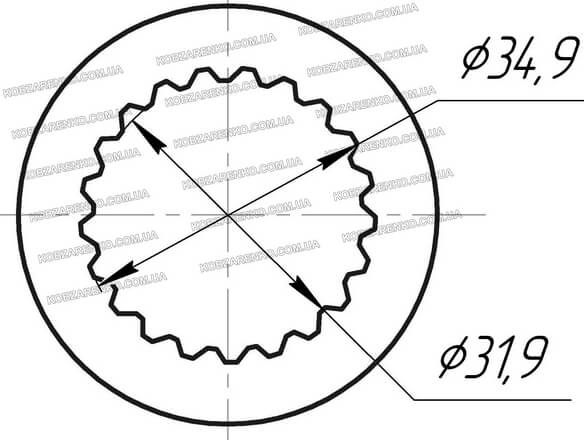

1⅜	(21)

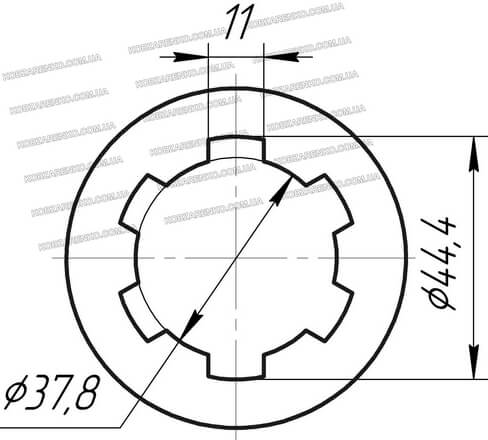

1³/4	(6)

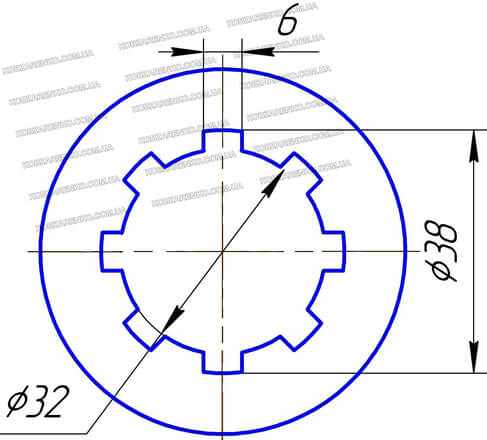

8:32:38	(8)

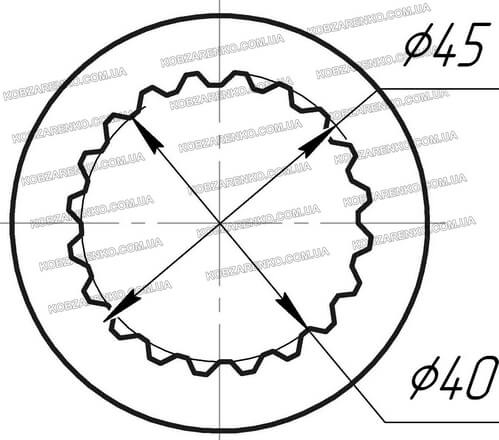

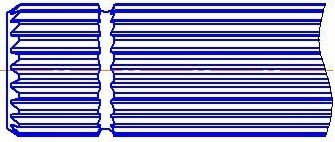

1³/4	(20)
