Solid rolled spiral

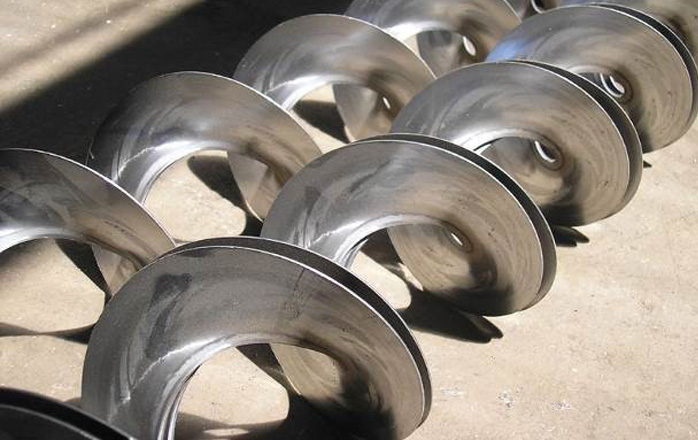

Solid-rolled spiral made in Italy (section length – 3 m).
In stock Original SX series spirals (European production). They are used as spare parts for the grain auger of the Claas combine, as well as combines of other manufacturers. Spirals of different diameters are available.

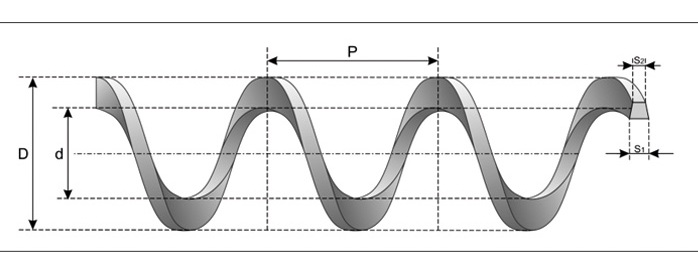

| Outer diameter D, mm. | Internal diameter d, mm. | PitchP, mm. | Thickness of the coil, mm.(S1/S2 ) | Directionswindings |
| 130 | 27 | 130 | 3/1.3 | DX/SX |
| 160 | 48 | 110 | 2/4,5 | DX |
| 180 | 48 | 180 | 3.5/2 | DX/SX |
| 200 | 48 | 200 | 8/3 | DX |
| 200 | 48 | 210 | 8/4 | DX/SX |
| 230 | 60 | 230 | 4/2.5 | DX |
| 250 | 60 | 250 | 4/2.5 | DX/SX |
| 280 | 70 | 190 | 5/3 | DX |
| 300 | 90 | 300 | 8/4 | DX/SX |
| 330 | 80 | 250 | 5/2 | DX/SX |
| 400 | 102 | 350 | 8/4 | DX/SX |
| 500 | 160 | 350 | 10/5 | DX |
